Product Description:

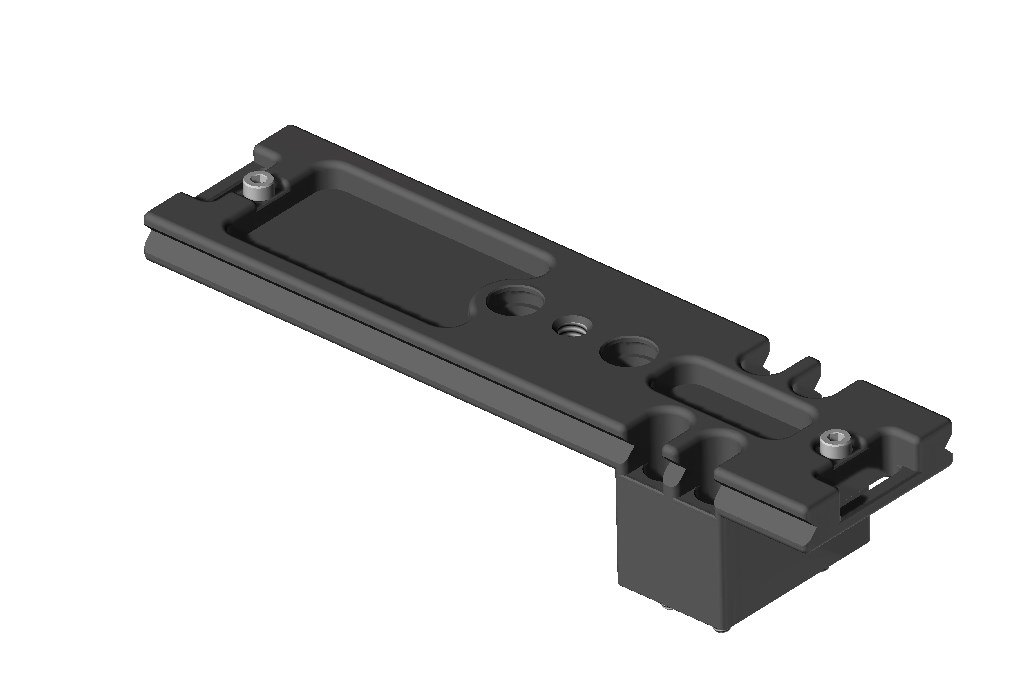

Replacement foot for: Sigma 500 F/5.6

Double-dovetail design allows for dual clamping surfaces on rail

To remove original foot, use the M3 hex key tool that comes with the FIGFR-002 to completely remove the four Sigma mounting screws.

To install the SIGFR-002, use the four provided screws and secure the foot to the lens collar.

If your mounting screws loosen over time, consider using Loctite 242 for security.

Foot leaves enough room for your fingers under the lens to freely use the lens focusing ring, and allow hood reversal for storage.

• 5.85 inches long
• 1.5 inches wide
• 1.225 inch high
• Weight: 135g
• One 1/4-20 tapped holes
• Two QD Sockets ( Quick Detach )
• Two safety stops. This prevents free fall when the clamp is not fully closed (M3 screws)
• Precision C.N.C. machined from 6061-T6 Aluminum
• Made in USA
• Stainless steel hardware
• Black hard coat anodized surface

One replacement foot
Two M3 safety screws attached to foot
Four Mounting Screws
Hex wrench for M3 screw and mounting screws.
