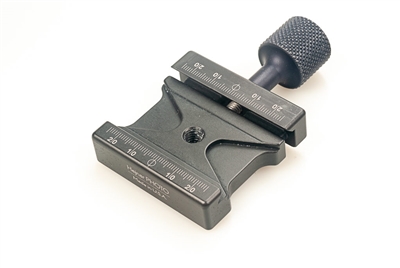

Arca-Swiss Compatible Quick Release Clamp with M8 Center Thread

This precision-engineered Arca-Swiss compatible clamp features an M8 threaded center socket, offering a dedicated mounting interface for specific ball heads, gimbals, and custom camera rigs. Designed with a traditional high-force screw-knob mechanism, it delivers superior clamping pressure and maximum gear security for professional photography applications.

Key Features & Quick Overview

• M8 Threaded Center Socket: Natively accepts M8 metric mounting screws for specialized tripod head connections.
• High-Force Screw-Knob: Traditional design provides greater clamping pressure than lever clamps and accommodates plates from various manufacturers.
• Long Black Knob: Oversized, ergonomic knob ensures easy operation and maximum leverage under heavy equipment loads.
• Safety Relief Grooves: 2.6mm deep relief grooves ensure compatibility with Arca-type plates and rails featuring safety stops.
• Anti-Slide Protection: Integrated relief grooves prevent gear "free fall" if the clamp jaws are not fully closed.
• Captive Field Hardware: The locking knob is captive and stops at its maximum opening so it cannot be lost in the field.
• Professional Durability: Precision CNC machined from aircraft-grade aluminum with a rugged black hard-coat finish.

Professional Arca-Type Quick Release Interface

Upgrade your camera support gear with a specialized M8 threaded quick release clamp built for the rigors of field shooting. Because the screw-knob mechanism offers a wider adjustment profile than fixed-width lever clamps, it easily absorbs the slight plate sizing variations common among different accessory manufacturers. This allows you to securely mix and match your existing plates with confidence.

Fail-Safe Engineering and Reliability: Safety is a primary design driver for this unit. The 2.6mm deep relief channels serve as a crucial safety boundary, catching the stop screws on your lens plates or multi-purpose rails before your gear can slide completely free of the jaws. Furthermore, the captive knob ensures you never find yourself stranded on a location shoot due to a missing component.

Technical Specifications

• Standard: Arca-Swiss Compatible
• Mounting Socket: Threaded M8 Metric Center
• Knob Style: Long Black (Captive Design)
• Relief Groove Depth: 2.6mm
• Material: CNC Machined Aircraft-Grade Aluminum
• Finish: Black Hard-Coat Anodized
• Origin: Made in the USA
